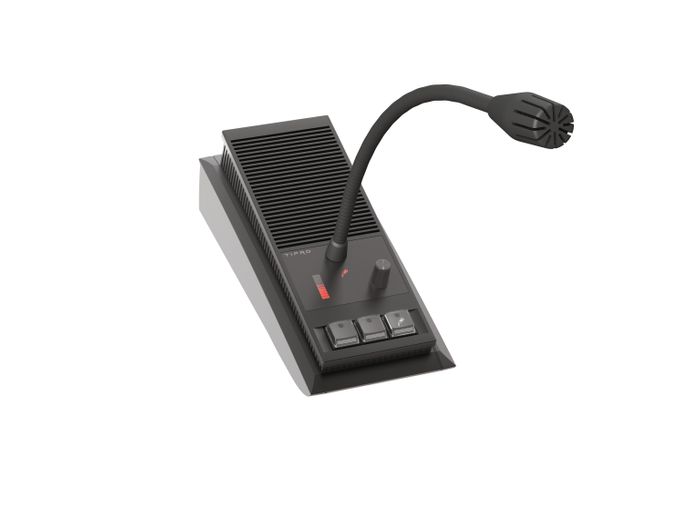

Voice Communication Dispatching Device - Intercom
)
)
)
)
FEATURES
- Compact design
- A single, large speaker which can produce a higher volume and lower frequency tones than the current speakerbox
- It can be used on its own, as USB audio device or in combination with a Handset.
- Besides this, it can be used in combination with the new BF03 as a very compact console solution.
- Combination of a USB audio device and an HID keyboard
- Plug&play operation with generic drivers
- Goose-neck microphone
- Separate alert/alarm audio output
- Connection for an external analogue handset
- Incremental encoder (endless potentiometer) for volume control
- Three-colour bar-graph display as VU meter and/or volume indicator
- Three programmable keys with LED indicators
- Analogue front-end designed to meet wide-band IP telephony standards
- Programmable signal processing includes ambient noise suppression (noise gating), signal compression and limiting
- Optional HID Gamepad Interface
- Optional echo-canceller with a digital signal processor
APPLICATIONS
- Dispatcher terminals
- Banking & trading consoles
- Multifunctional control panels
- Digital telephony (e.g. Voice over IP) devices
TECHNICAL DETAILS
Intercom
10 W Loudspeaker
Unidirectional goose-neck microphone
USB audio device
HID telephony interface supported
Optional echo-canceller with a digital signal processor
Programmable Keys – User Configurable
PTT key + 2 freely programmable keys
Modular & Programmable
Can be combined with other modules from FREE family, e.g. Handset, keyboard
Keys can be programmed as keyboard emulation, HID Telephony events
Audio settings can be programmed (volume settings, microphone sensitivity, PTT/PTM, HOOK events, etc)
All settings stored in hardware, configuration software: ChangeMe
OPTIONS
Hardware Echo Cancellation
For use with duplex audio, in case no echo cancellation is present in software, we offer an optional hardware echo canceler.

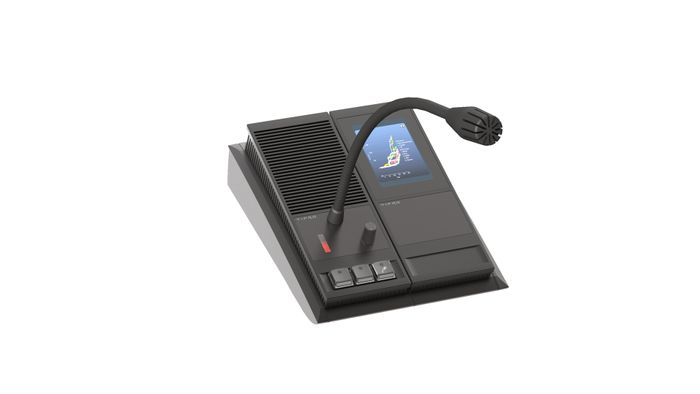

BeFREE 03
In combination with the BF03, a compact and low-cost dispatching solution can be built.

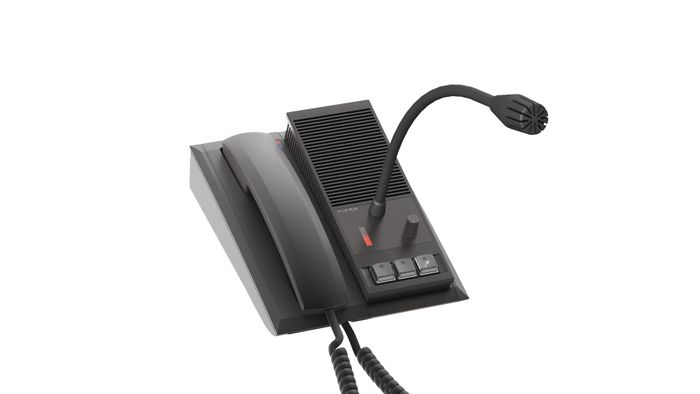

Handset
Because of the modular design, the BeFREE can be combined with one or more Handsets on the left or right side. The handset can be either:
- USB; Besides the Handsfree audio, this offers an extra, independent, voice channel
- Analog Switching; There is one audio (voice) channel that switches automatically from Handsfree to Handset when lifting the Handset.
Keyboard
If more shortcut keys are needed, a programmable keyboard can be added to the BeFREE.
