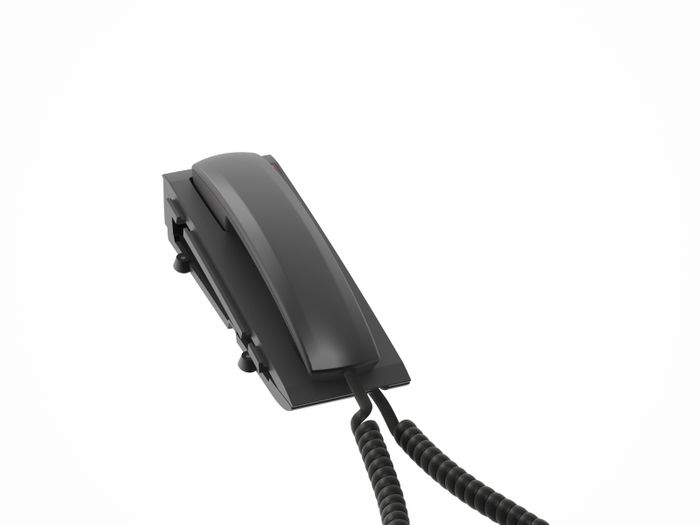

Voice Communication Dispatching Device: Handset Module - USB Audio Device
)
)
)
FEATURES
- Add-on module or standalone device (if a Tipro controller is integrated in)
- Combination of a USB audio device and an HID keyboard (plug&play operation with generic drivers)
- Programmable PushToTalk key and Hook switch
- Two RGB LED status indicators
- Hardware generated side-tone
- Software adjustable volume (loudspeaker and microphone) and side-tone level
- Programmable signal processing includes ambient noise suppression (noise gating), signal compression and limiting
- Analog front-end designed to meet wide-band IP telephony standards
- Integrated acoustic shock protection
- Optional dial-pad in the cradle/base
- Optional HID Gamepad Interface
- Optional analog audio interface (instead of USB) for legacy systems
- Optional analog switching handset in combination with all BeFREEs (except the BeFREE07) and new Intercom module
APPLICATIONS
- Dispatcher terminals
- Banking & trading consoles
- Multifunctional control panels
- Digital telephony (e.g. Voice over IP) devices
TECHNICAL DETAILS
Handset
Designed to meet wide-band IP telephony standards
USB audio device or analog switching (using USB codec of BeFREE or Intercom)
HID telephony interface supported (HID Gamepad Optional)
Integrated acoustic shock protection
Push To Talk (PTT) or Push To Mute (PTM)
Programmable Keys – User Configurable
Programmable Hook and PTT (/PTM) events
Optional Dialpad
Modular & Programmable
Can be combined with other modules from FREE family, e.g. BeFREE, Speakerbox, Intercom, keyboard
Events can be programmed as keyboard emulation, HID Telephony events
Audio settings can be programmed (volume settings, microphone sensitivity, PTT/PTM, HOOK events, etc)
All settings stored in hardware, configuration software: ChangeMe
OPTIONS

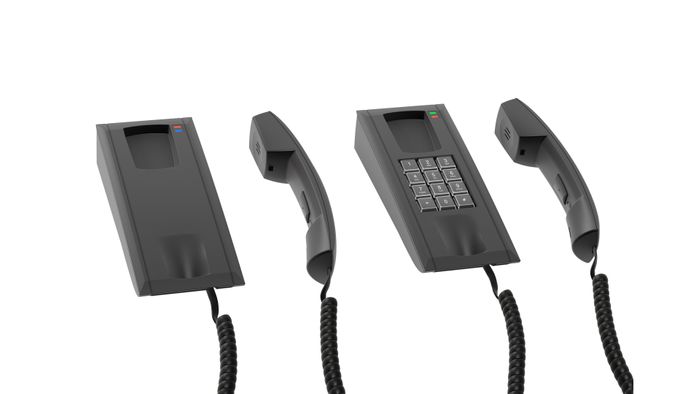

Dialpad
A mechanical key pad can be integrated. All keys are fully programmable.
BeFREE
Handsets can be added to any BeFREE.
Intercom or Speakerbox
Because of the modular design, the Handset can be combined with a Speakerbox or intercom on the left or right side.
Keyboard
If shortcut keys are needed, a programmable keyboard can be added to the Handset.
