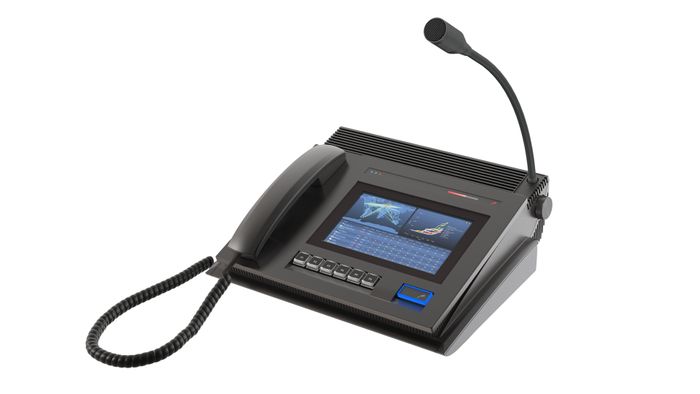

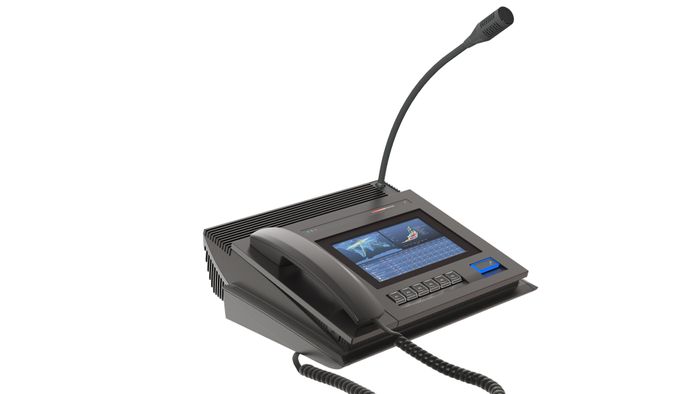

Voice Communication Dispatching Device - 7" Touchcomputer with Integrated Intercom and Handset
)
)
)
FEATURES
- Spacesaving integration of a fanless touchcomputer, Intercom and Handset
- 7” TFT LCD (15:9) with 800 x 480 resolution
- 6 additional programmable keys
- Modular – combinable with other modules of the FREE family into multifunctional terminals
- Low-profile horizontal design
- Silent and reliable – no moving parts, industrial grade components, Ethernet redundancy, redundant internal audio and controller interfaces
- Cable management – hidden and secured, but accessible
- Built-in Tipro Controller
- Stereo loudspeakers (Left and Right, 2 x 5W) with volume control encoder
- Supports HID Keyboard & HID Telephony Interface (HID Gamepad Optional)
- Goose-neck microphone with illuminated PTT key
- Three-colour bar-graph display
- Several LED indicators (power, SSD, microphone, touchscreen …)
- Optional Inclination Mechanism (VESA 75)
APPLICATIONS
- Operator/Dispatcher terminals/consoles for command and control centres in:
- Transport and traffic control (railways, air traffic …)
- Public safety (police, fire brigades, ambulance …)
- Utilities (electricity, gas …)
- Building/facility management systems (airports, banks, industrial plants …)
- Trading and banking consoles
- Multifunctional control panels
TECHNICAL DETAILS
Computer
- Dual Core Celeron N6210 processor (SoC) with 8 GB RAM (optional 16 GB or 32 GB RAM)
- Solid-State Disk 64 GB (optional 256 GB SSD)
- Operating System: Windows, Linux supported. Android possible-limited support. Supplied without operating system.
Display
- Industrial grade 7” high-brightness TFT LCD with 800 x 480 resolution
Touchscreen
- Projected Capacitive (PCAP) touchscreen
Intercom
- Stereo loudspeakers (Left and Right, 2 x 5W) with two separate volume control encoders
- Goose-neck microphone with illuminated PTT key
- USB audio device
- Optional echo-canceller with a digital signal processor
Handset
- Automatically switching between Handsfree and Handset
- Programmable Hook and PTT (/PTM) events
- Programmable side-tone
- Integrated acoustic shock protection
- Optional Dialpad
Programmable Keys – User Configurable
- 6 single keys
- Various combinations of single, double and blind keys
Modular & Programmable
- Can be combined with other modules from FREE family, e.g. Handset, keyboard
- Keys can be programmed as keyboard emulation, HID Telephony events
- Audio settings can be programmed (volume settings, microphone sensitivity, PTT/PTM, HOOK events, etc)
- All settings stored in hardware, configuration software: ChangeMe
OPTIONS
Hardware Echo Cancellation
- For use with duplex audio, in case no echo cancellation is present in software, we offer an optional hardware echo canceler.
Handset
- Because of the modular design, the BeFREE can be combined with one or more Handsets on the left or right side. The handset can be either:
– USB; Besides the Handsfree audio, this offers an extra, independent, voice channel
– Analog Switching; There is one audio (voice) channel that switches automatically from Handsfree to Handset when lifting the Handset.
Keyboard
- If more shortcut keys are needed, a programmable keyboard can be added to the BeFREE

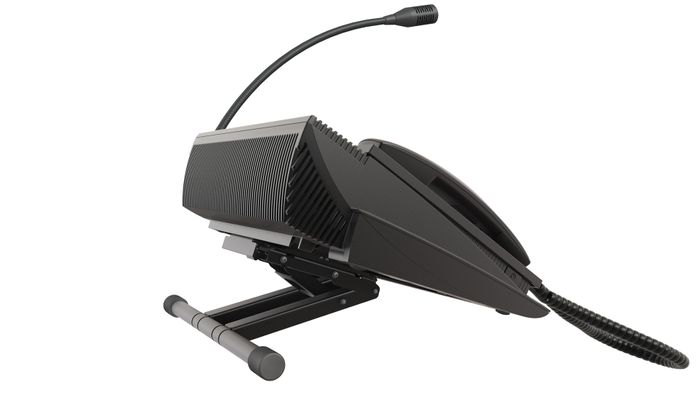

Inclination Mechanism
- To change the angle of the display, an optional Inclination Mechanism can be mounted.
