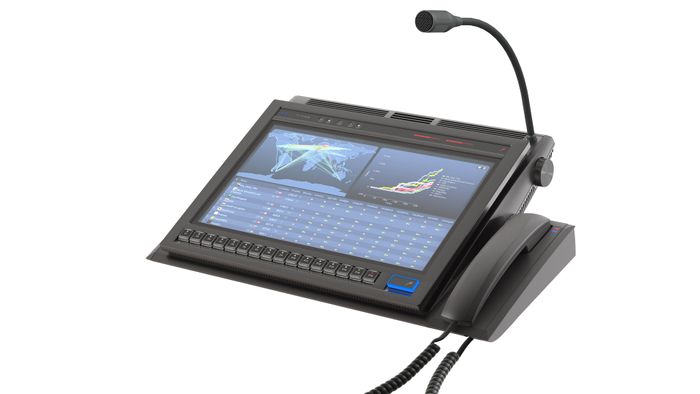

Voice Communication Dispatching Device - 15.6'' Touchcomputer with Integrated Intercom and Programmable Keys
)
)
)
)
FEATURES:
Ergonomic integration of a fanless computer, touchscreen and microphone and speakers 15.6” wide screen TFT LCD (16:9) with Full HD resolution (1920 x 1080) 16 additional programmable keys with integrated LED indicators (optional without line-keys) Modular – can be combined with other modules of the FREE family into multifunctional terminals Low-profile horizontal design Silent and reliable – no moving parts, industrial grade components, Ethernet redundancy, redundant internal audio and controller interfaces Extensive connectivity (LAN, USB, COM, external display, digital inputs, analog audio) Cable management – hidden and secured, but accessible Built-in Tipro Controller Stereo loudspeakers (5W each) with two separate volume control encoders Goose-neck microphone with illuminated PTT key Dual three-colour bar-graph display Five mechanical keys for brightness control, volume adjustments and other functions Several LED indicators (power, SSD, microphone, touchscreen …) Optional HID Gamepad Interface Optional Inclination Mechanism (VESA 75) External connections to the analogue sound card of integrated computer (Line-In, Line-Out, Mic-In) External connections to the internal Intercom amplifiers (Speaker-In, Mic-Out)
APPLICATIONS:
- Operator/Dispatcher terminals/consoles for command and control centres in:
- Transport and traffic control (railways, air traffic …)
- Public safety (police, fire brigades, ambulance …)
- Utilities (electricity, gas …)
- Building/facility management systems (airports, banks, industrial plants …)
- Trading and banking consoles
- Multifunctional control panels
TECHNICAL DETAILS:
Computer
- Intel Quad-Core 64-bit J6412 processor (SoC) with 8 GB RAM (optional 16 GB or 32 GB RAM)
- Solid-State Disk 256 GB
- Operating System: Windows, Linux supported. Android possible-limited support. Supplied without operating system.
Display
- Industrial grade 15.6” high-brightness TFT LCD with HD (1920 x 1080) resolution
Touchscreen
- ELO 5-wire resistive touchscreen or
- Projected Capacitive (PCAP) touchscreen
Intercom
- Stereo loudspeakers (5W each) with two separate volume control encoders
- Goose-neck microphone with illuminated PTT key
- Dual USB audio device
- Connected to the internal sound card (analogue interface)
- Up to eight listening (output) and up to four recording (input) channels
- Optional echo-canceller with a digital signal processor
Programmable Keys – User Configurable
- 16 single keys with integrated LED indicators or
- 8 double keys with integrated LED indicators or
- 16 blind keys or
- Various combinations of single, double and blind keys
Modular & Programmable
- Can be combined with other modules from FREE family, e.g. Handset, keyboard
- Keys can be programmed as keyboard emulation, HID Telephony events
- Audio settings can be programmed (volume settings, microphone sensitivity, PTT/PTM, HOOK events, etc)
- All settings stored in hardware, configuration software: ChangeMe
OPTIONS:
Hardware Echo Cancellation
For use with duplex audio, in case no echo cancellation is present in software, we offer an optional hardware echo canceler.
Handset
Because of the modular design, the BeFREE can be combined with one or more Handsets on the left or right side. The handset can be either:
– USB; Besides the Handsfree audio, this offers an extra, independent, voice channel
– Analog Switching; There is one audio (voice) channel that switches automatically from Handsfree to Handset when lifting the Handset.
Keyboard
If more shortcut keys are needed, a programmable keyboard can be added to the BeFREE.
Inclination Mechanism
To change the angle of the display, an optional Inclination Mechanism can be mounted.
