• Fanless ARM based computer
• 3.5” TFT LCD in portrait orientation with half-size VGA resolution (320 x 480)
• Projected Capacitive Touch sensor
• Modular – combinable with other modules of the FREE family into multifunctional terminals
• Low-profile horizontal design
• Silent and reliable – no moving parts, industrial grade components
• Cable management – hidden and secured, but accessible

APPLICATIONS

• Operator/Dispatcher terminals/consoles for command and control centres in:
• Transport and traffic control (railways, air traffic …)
• Public safety (police, fire brigades, ambulance …)
• Utilities (electricity, gas …)
• Building/facility management systems (airports, banks, industrial plants …)

TECHNICAL DETAILS

 Computer

Processor: 800 MHz ARM Cortex A7

System Memory: 1 GB RAM

 Mass Storage

Type: internal eMMC flash

Capacity: 4GB

External mass storage: µSDCard slot

 Display

Type: TFT LCD

Size: 3.5” diagonal

Native resolution: 320 x 480 (portrait)

 Touchscreen

Projected Capacitive (PCAP) touchscreen

Connectivity

USB: 2 x USB 2.0 ports

Ethernet : 1 x 10/100 Mbit

12V DC input

UART (serial port)

Operating system

Linux pre-installed

Modular

Can be combined with other modules from FREE family, e.g.

Intercom,

Handset,

keyboard

OPTIONS

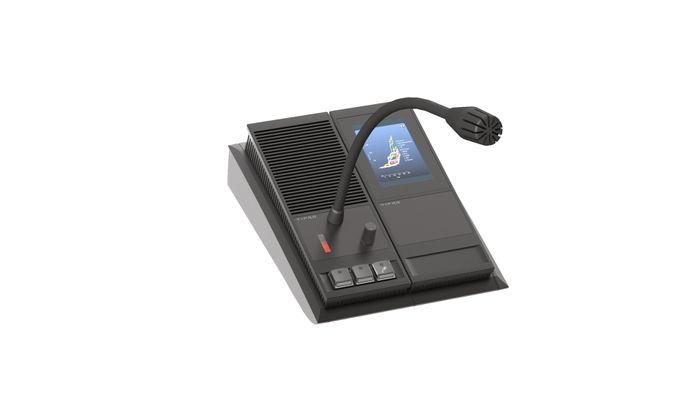

Intercom

A logical combination of Intercom and BeFREE03 makes a very compact voice communication module with ethernet connection.

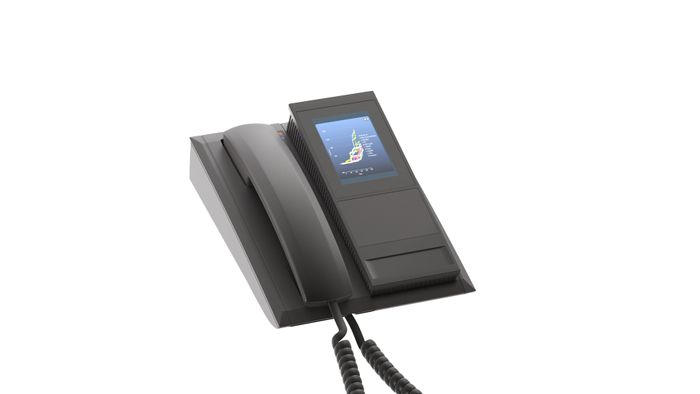

Handset

Because of the modular design, the BeFREE can be combined with one or two USB Handsets on the left or right side.

Intercom and Handset. The handset can be either:

• USB; Besides the Handsefree audio, this offers an extra, independent, voice channel
• Analog Switching; There is one audio (voice) channel that switches automatically from Handsfree to Handset when lifting the Handset.

Keyboard

Shortcut keys are needed, a programmable keyboard can be added to the BeFREE.

POE

Power over ethernet is optional. In this case just one cable (ethernet) is needed.
