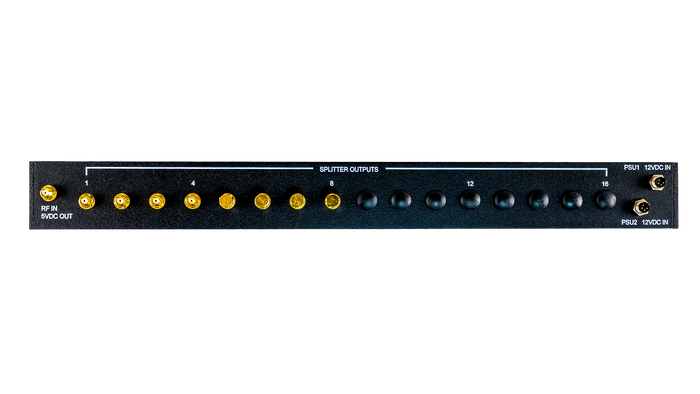

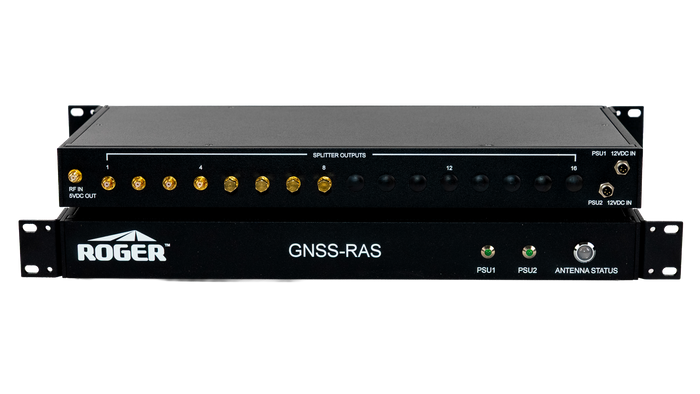

Active 1-to-8 signal splitter with 10dB gain
)
)
Frequency Range: Covers all GNSS constellations within the frequency range of 1.15 GHz to 1.63 GHz, ensuring comprehensive coverage for synchronization and distribution needs.
Redundant Power Supply: Equipped with a fully redundant dual power supply system to guarantee uninterrupted
signal reception for end-user devices. Can work with one or two power supplies.
LED Status Indicators: Intuitive indicator LEDs monitor antenna current consumption and power supply units (PSUs), facilitating quick and efficient troubleshooting.
Signal Integrity: Each splitter output is DC loaded with 200-ohm resistors to simulate antenna current draw, preventing false antenna alarms in connected receivers.
The GNSS-RAS-8 delivers dependable performance and precise signal distribution, meeting the demands of environments requiring robust GNSS reception solutions.
